CPU BLOCK DIAGRAM
CORE BOARD BLOCK DIAGRAM

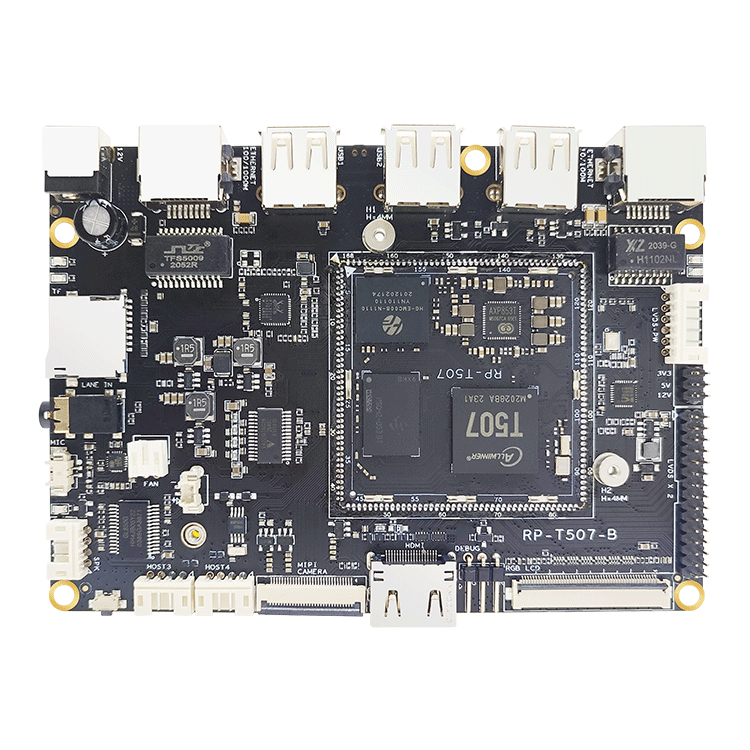

PRODUCT DISPLAY
PCB SIZE DRAWING
HARDWARE INDEX
| size | L120mm x W85mm x H14mm |
| CPU | Allwinner T507 quad-core A53 clocked at 1.5GHz |
| GPU | Mali-400 G31 GPU |
| Memory | LDDR4 standard 2G (1G/2GB batch optional) |
| memory | eMMC comes standard with 8G (16G/32G/64G batch optional) |
| power management | AXP853T supports standby, key switch |
| Operating Voltage | The input voltage is 12V and the maximum power is less than 3W (without any peripherals) |
| support system | Android/Linux+QT |
| operating temperature | -25 to +75 degrees |
| life | Continuous operating life is more than 5 years |
COMMONINTERFACE
| USB interface | 5-way USB, three-way external plug, one of which is OTG, two-way internal plug |
| UART serial port | 2-way TTL 3.3V level, one of which is Debug |
| SDIO interface | 2 SDIO interfaces, one TF card, the other connected to WIFI |
| ADC interface | 2-channel ADC interface |
| I2C interface | 2-way I2C interface |
| GPIO interface | 4 channels of available GPIO, can be connected to 5V or relay devices |
| 4G | MINI PCIE interface supports 2G/3G/4G full Netcom |
| LVDS display | 1 channel LVDS maximum support 1920x1080 1080P 60fps |
| RGB display | 1 channel RGB 888 output, maximum support 1920x1080 1080P 60fps |
| HDMI display | 1 HDMI output supports up to 4K 60FPS |
| CVBS output | 1 CVBS output |
| MIPI CSI input | Support 4lane MIPI CSI input |
| voice output | 1 channel left and right channel output, 5W power amplifier attached to the bottom plate |
| Voice input | 1 microphone input, 1 lane in input (AC107 on the bottom plate) |
| Fast Ethernet | 100M RMII Ethernet |
| Gigabit Ethernet | 100M/1000M RGMII Ethernet |
| output power | Multi-channel power output 3.3V 5V 12V |
| System Upgrade | Support local USB upgrade |
CORRENT PARAMETER TABLE
| project | minimum | typical | maximum | |
| Power parameters | Voltage | 6.5V | 12V | 15V |
| ripple | -- | 50mV | 120mV | |
| current | 162mA | -- | -- | |
supply current (no other peripherals connected) | Turn-on current | 165mA | 229mA | 376mA |
| Play sound | 172mA | 192mA | 319mA | |
supply current (connected to the display) | LVDS 1024x600 | 325mA | 362mA | 475mA |
| surroundings | Relative humidity | -- | 65% | 75% |
| Operating temperature | -25℃ | -- | 75℃ | |
| storage temperature | -30℃ | -0℃ | 100℃ | |
