CPU BLOCK DIAGRAM
CORE BOARD BLOCK DIAGRAM

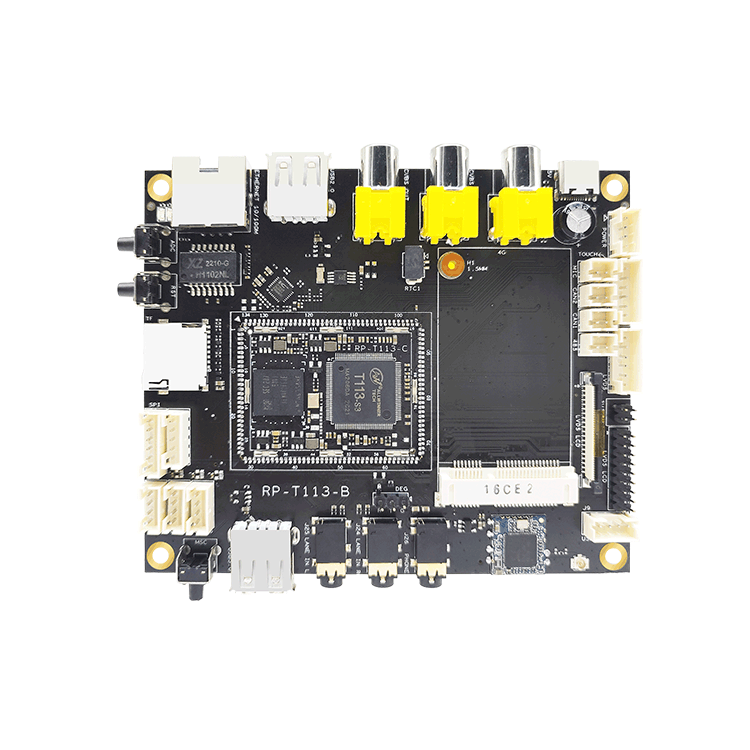

PRODUCT DISPLAY
PCB SIZE DRAWING
HARDWARE INDEX
Main hardware parameters | |
Motherboard size | 110mm long*90mm wide*12mm high |
CPU | AllWINNER RPT113 Dual Core ARM CortexTM-A7 CPU |
Memory | Built-in 128MB DDR3 |
memory | EMMC 5.1 Standard 4GB Optional 8G/16G/32G |
power management | discrete design |
Operating Voltage | 5V 500mA |
support system | Linux5.4 QT5.12.5 |
operating temperature | -25 to +85 degrees |
life | Continuous operating life is more than 5 years |
COMMONINTERFACE
Common interface of motherboard | |
USB | 4 USB ports, 1 OTG2.0, 3 USB2.0 |
voice output | 1 channel headphone left and right channel output, 1 channel LANE OUT output |
Analog voice input | 3-way analog voice input |
Analog voice output | 1 channel headphone left and right channel output |
CVBS | Two CVBS inputs, one CVBS output |
WIFI | Support WIFI (RTL8723) |
Bluetooth | 1 channel 4.2G Bluetooth+BLE(RTL8723) |
Ethernet | Support one 100M Ethernet (RMII IP101GR) |
LVDS | One single 6/8 LVDS output, up to 1280x800 |
touch screen | Support I2C touch screen |
CAN | 1 channel native CAN output |
RS485 | 1 channel RS485 |
RTC | HYM8563 RTC clock chip, power consumption is less than 1uA |
UART | 4 TTL serial ports, UART1, UART2 can be set to RS232 |
ADC | 4-channel ADC analog input |
GPIO | 8-way GPIO |
I2C | 1 way I2C |
SPI | One SPI interface |
System Upgrade | Support local USB upgrade |
CORRENT PARAMETER TABLE
project | minimum | typical | maximum | |
Power parameters | Voltage | 3.4V | 5V | 5.5V |
ripple | -- | 50mV | ||
RTC (HYM8563) | 0.3uA | 0.9uA | 1.2uA | |
Including backplane current test | Turn-on current | 14mA | 55mA | 76mA |
Desktop Quiescent Current | 38mA | |||
surroundings | Relative humidity | -- | 65% | 75% |
Operating temperature | -25℃ | -- | 85℃ | |
storage temperature | -40℃ | -0℃ | 100℃ | |
