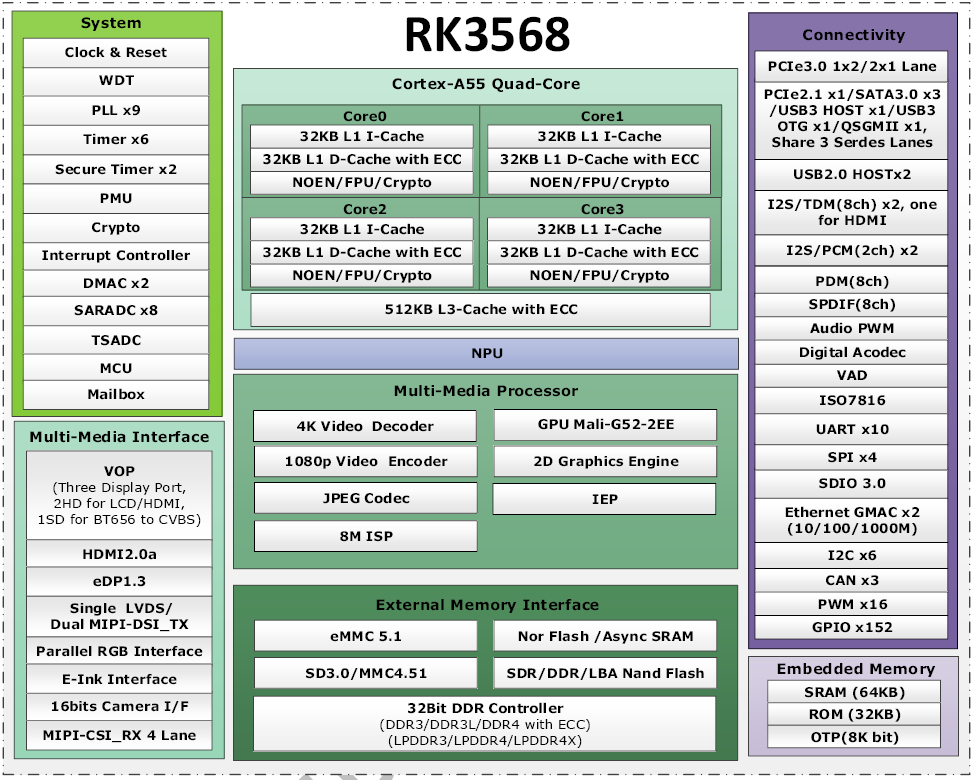

CPU BLOCK DIAGRAM
CORE BOARD BLOCK DIAGRAM

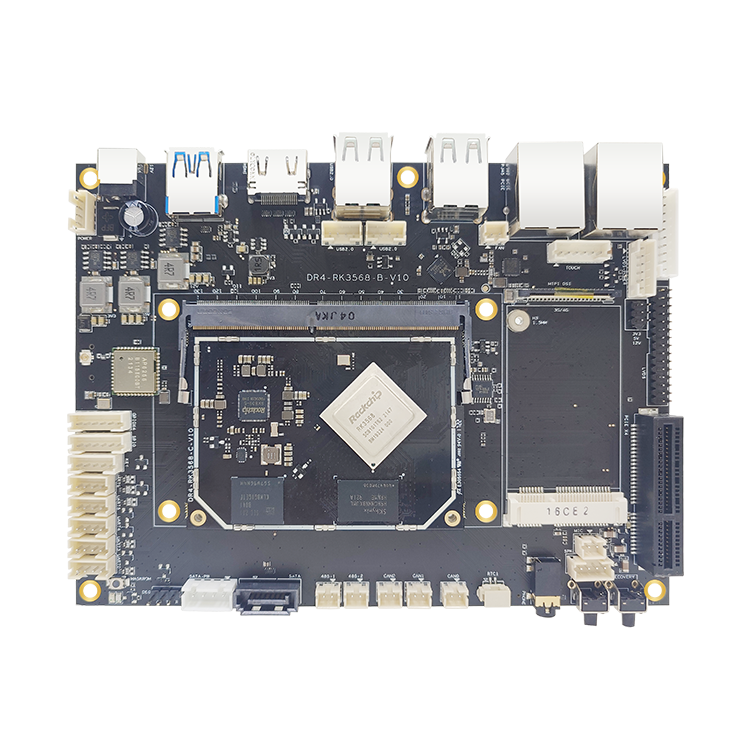

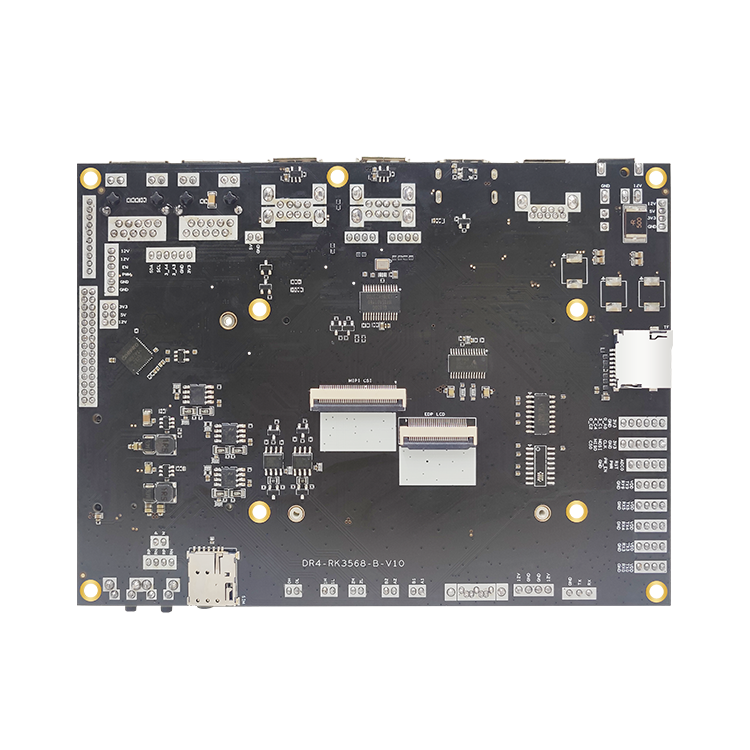

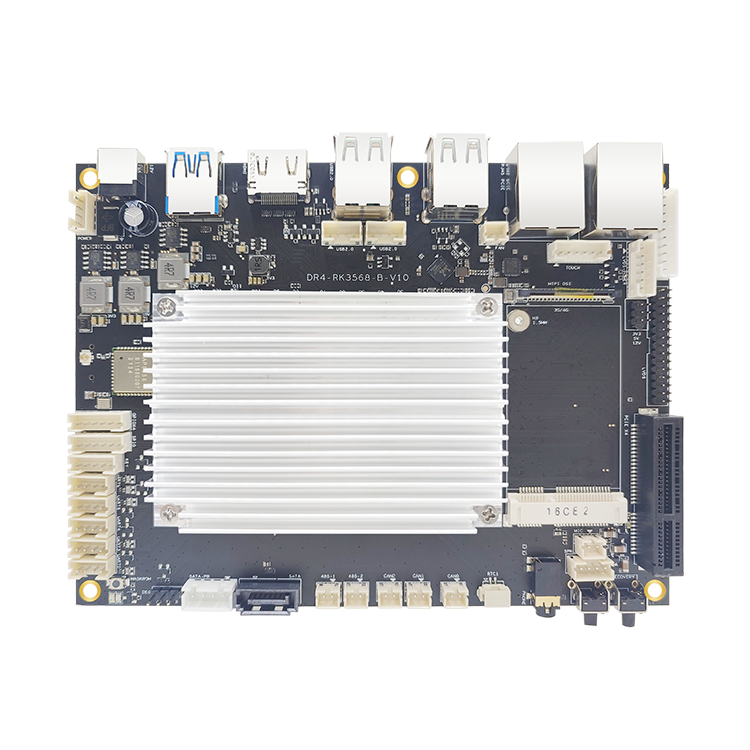

PRODUCT DISPLAY

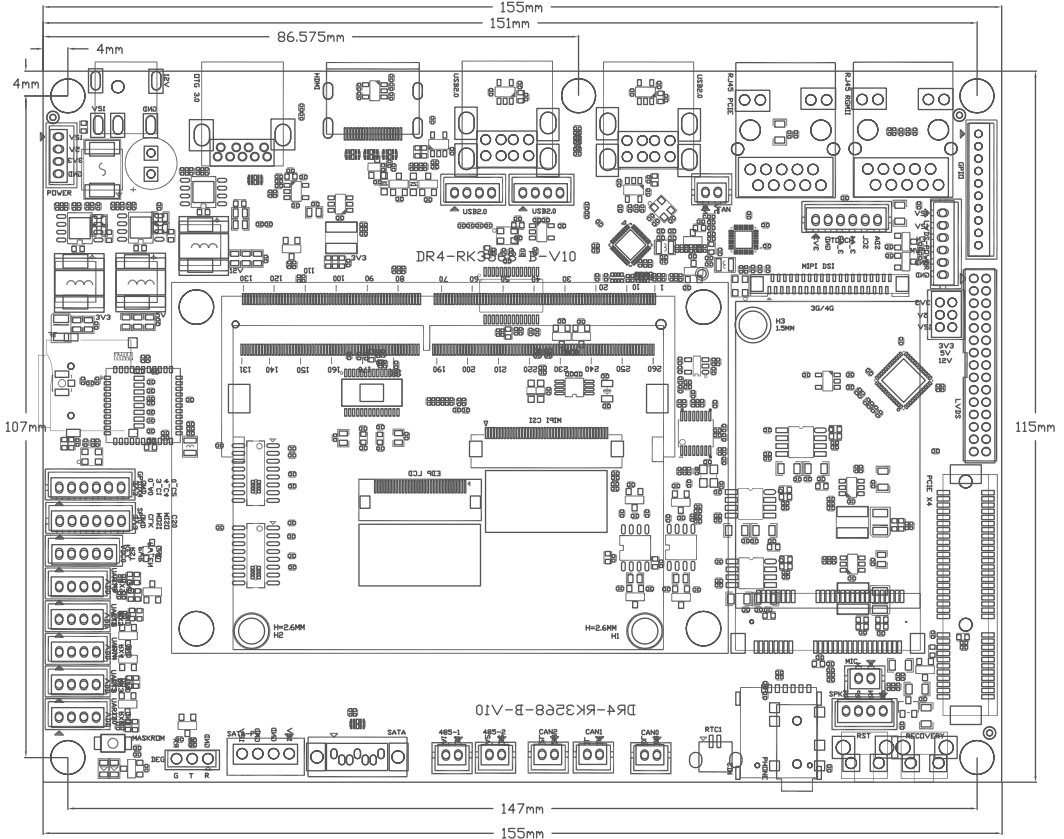

PCB SIZE DRAWING
HARDWARE INDEX
| Motherboard size | 155mm long*115mm wide*17mm high |
| CPU | ROCKCHIP RK3568 Quad-core A55 |
| NPU | 0.8T computing power neural network unit |
| GPU | ARM G52 2EE |
| Memory | LPDDR4 standard 2GB can be configured with 4GB/8GB |
| memory | EMMC 5.1 can be configured with 32GB/64GB/128GB |
| power management | RK809-5 |
| Operating Voltage | Above 12V 2A |
| support system | Andriod11/ubuntu/Linux4.19+QT5.12/Ubuntu18.04 |
| operating temperature | -10 to +60 degrees |
| life | Continuous operating life is more than 5 years |
COMMONINTERFACE
| USB HOST | 7 USB ports (5 external, 2 internal, 1 USB3.0) |
| serial port | 6 serial ports, can be set to RS232 or TTL respectively, one of which is debug |
| I2C | 1 way I2C |
| CAN | 3-way CAN bus |
| RS485 | 2-way RS485 |
| GPIO | 12 available GPIO |
| SPI | 1 way SPI interface |
| HDMI output | 1 HDMI output, up to 4K |
| MIPI DSI display | Support 1ch MIPI DSI display |
| eDP display | 1 channel eDP display interface |
LVDS display | Support single-channel dual-channel LVDS output, up to 1920x1080 |
| MIPI CSI input | Support 1 MIPI CSI camera input |
| Ethernet | Support two-way Gigabit Ethernet (RGMII+PCIE) |
| voice output | 1 channel headphone left and right channel output, 2 channel speaker output 5W/8 ohm |
| Voice input | 1-way microphone input |
| WIFI | Support WIFI 2.4G+5G (AP6256) |
| Bluetooth | 1 channel 5.0G Bluetooth+BLE(AP6256) |
RTC | External RTC chip (HYM8563) power consumption is less than 0.2uA |
| SATA | Support one SATA hard disk interface |
| PCIE3.0 | Support one PCIE3.0 x2 standard interface |
| 4G | 4G function, PCI-E 3G/4G Internet access |
| TF card | Support TF card |
| RTC real time clock | External button battery supports power-down time saving (independent HYM8563) |
| System Upgrade | Support local USB upgrade |
CORRENT PARAMETER TABLE
| project | minimum | typical | maximum | |
| Power parameters | Voltage | 3.3V | 3.3V | 3.4V |
| ripple | -- | 50mV | ||
| RTC (HYM8563) | 0.3uA | 0.9uA | 1.2uA | |
Core board input 3.39V Current test | Turn-on current | 273mA | 345mA | 465mA |
| Desktop Quiescent Current | 325mA | |||
| surroundings | Relative humidity | -- | 65% | 75% |
Operating temperature | -10℃ | -- | 60℃ | |
| storage temperature | -30℃ | -0 | 100℃ | |
CPU BLOCK DIAGRAM
CORE BOARD BLOCK DIAGRAM
PRODUCT DISPLAY
PCB SIZE DRAWING
HARDWARE INDEX
| Motherboard size | 155mm long*115mm wide*17mm high |
| CPU | ROCKCHIP RK3568 Quad-core A55 |
| NPU | 0.8T computing power neural network unit |
| GPU | ARM G52 2EE |
| Memory | LPDDR4 standard 2GB can be configured with 4GB/8GB |
| memory | EMMC 5.1 can be configured with 32GB/64GB/128GB |
| power management | RK809-5 |
| Operating Voltage | Above 12V 2A |
| support system | Andriod11/ubuntu/Linux4.19+QT5.12/Ubuntu18.04 |
| operating temperature | -10 to +60 degrees |
| life | Continuous operating life is more than 5 years |
COMMONINTERFACE
| USB HOST | 7 USB ports (5 external, 2 internal, 1 USB3.0) |
| serial port | 6 serial ports, can be set to RS232 or TTL respectively, one of which is debug |
| I2C | 1 way I2C |
| CAN | 3-way CAN bus |
| RS485 | 2-way RS485 |
| GPIO | 12 available GPIO |
| SPI | 1 way SPI interface |
| HDMI output | 1 HDMI output, up to 4K |
| MIPI DSI display | Support 1ch MIPI DSI display |
| eDP display | 1 channel eDP display interface |
LVDS display | Support single-channel dual-channel LVDS output, up to 1920x1080 |
| MIPI CSI input | Support 1 MIPI CSI camera input |
| Ethernet | Support two-way Gigabit Ethernet (RGMII+PCIE) |
| voice output | 1 channel headphone left and right channel output, 2 channel speaker output 5W/8 ohm |
| Voice input | 1-way microphone input |
| WIFI | Support WIFI 2.4G+5G (AP6256) |
| Bluetooth | 1 channel 5.0G Bluetooth+BLE(AP6256) |
RTC | External RTC chip (HYM8563) power consumption is less than 0.2uA |
| SATA | Support one SATA hard disk interface |
| PCIE3.0 | Support one PCIE3.0 x2 standard interface |
| 4G | 4G function, PCI-E 3G/4G Internet access |
| TF card | Support TF card |
| RTC real time clock | External button battery supports power-down time saving (independent HYM8563) |
| System Upgrade | Support local USB upgrade |
CORRENT PARAMETER TABLE
| project | minimum | typical | maximum | |
| Power parameters | Voltage | 3.3V | 3.3V | 3.4V |
| ripple | -- | 50mV | ||
| RTC (HYM8563) | 0.3uA | 0.9uA | 1.2uA | |
Core board input 3.39V Current test | Turn-on current | 273mA | 345mA | 465mA |
| Desktop Quiescent Current | 325mA | |||
| surroundings | Relative humidity | -- | 65% | 75% |
Operating temperature | -10℃ | -- | 60℃ | |
| storage temperature | -30℃ | -0 | 100℃ | |
