CPU BLOCK DIAGRAM

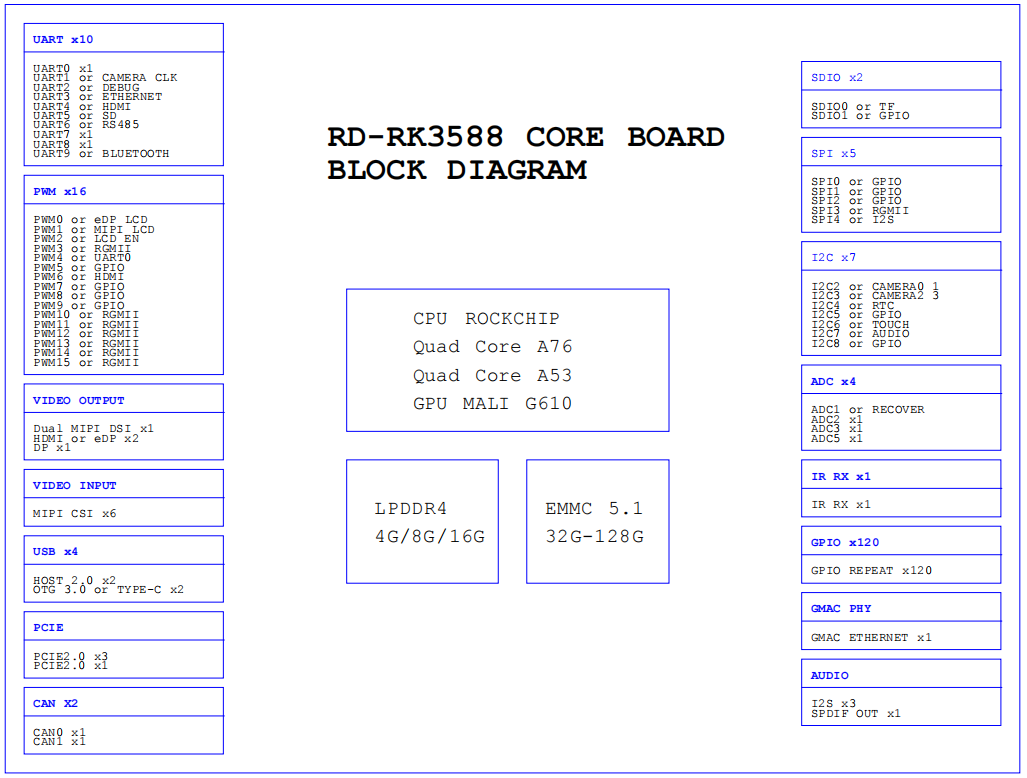

CORE BOARD BLOCK DIAGRAM

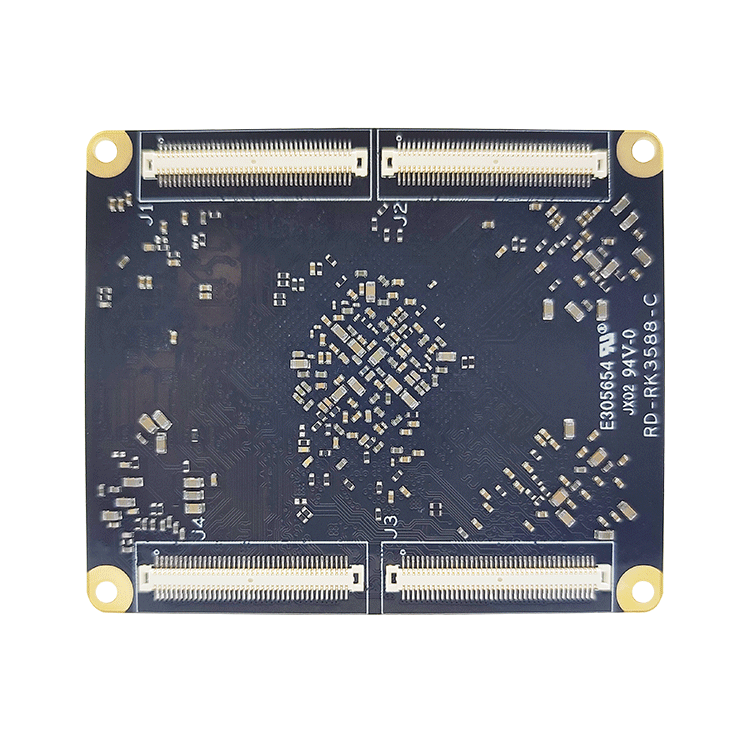

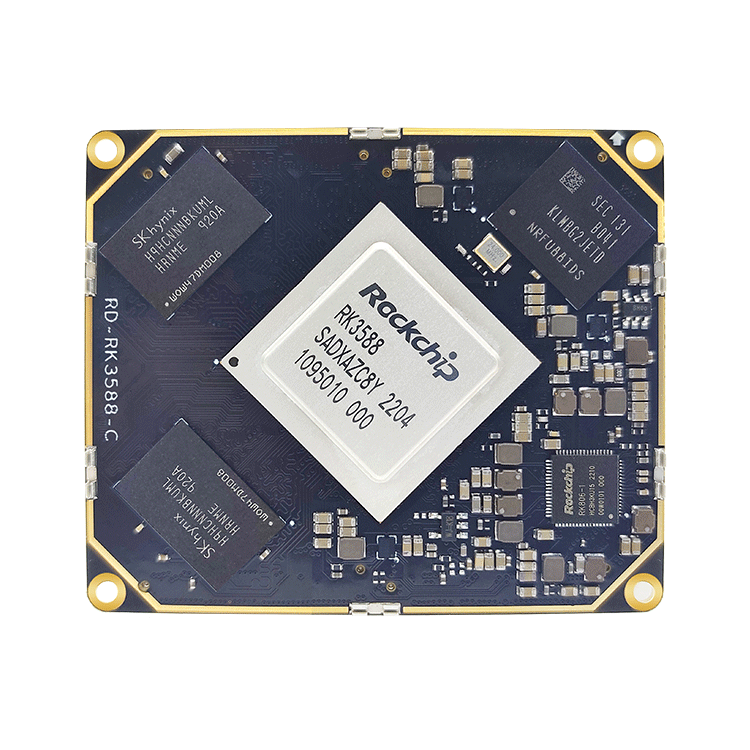

PRODUCT DISPLAY

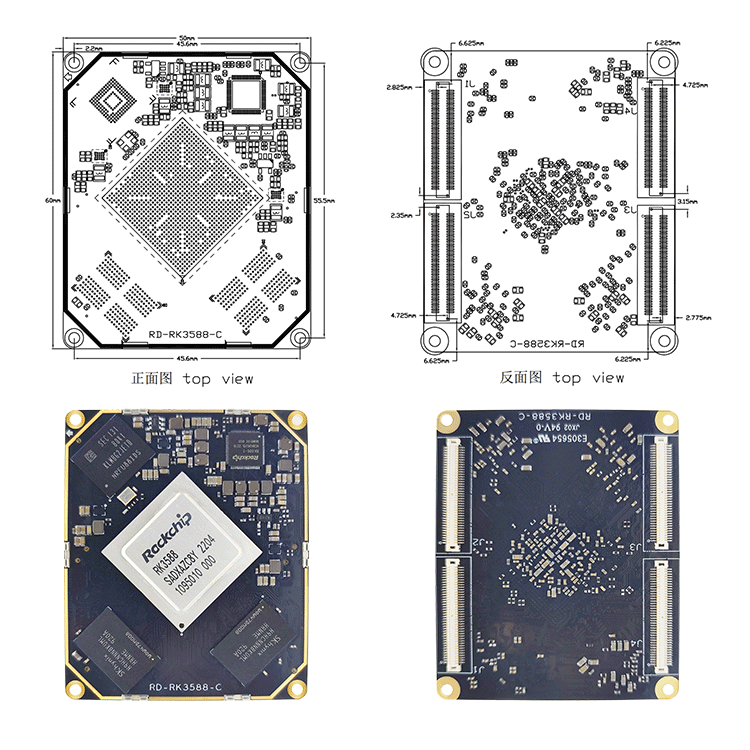

PCB SIZE DRAWING
HARDWARE INDEX
Main hardware indicators | |
size | 60mm long*50mm wide*4.2mm high |
Connection method | Board-to-Board Connectors |
CPU | ROCKCHIP RK3588 Octa-core A76+A55 |
NPU | 6 TOPS |
GPU | Mali G61 MP4 |
RAM | LPDDR4x optional 4G/8G/16G |
memory | EMMC 5.1 Standard 8GB Optional 32G/64G/128G |
power management | RK806-1 |
Operating Voltage | 3.4-5.5V above 5A |
support system | Andriod12/ubuntu18.04/Linux5.10+QT5.15/debian11 |
Operating temperature | -10 to +60 degrees |
life | Continuous operating life is more than 5 years |
COMMONINTERFACE
Common interface of core board | |
HDMI | 2 HDMI high-definition output supports up to 4K display |
EDP | 2ch 4Lane eDP up to 1080P |
DP | 2ch 4Lane DP up to 4K |
MIPI DSI | 2-way MIPI DSI supports up to 2K |
MIPI CSI | 6 MIPI CAMERA CSI inputs |
I2S | Three-way I2S, two-way 8-channel/one-way 2-channel |
PCIE | 1ch PCIE 3.0 x4 + 3ch PCIE2.0 x1 |
SATA | 3-way SATA3.0 |
USB2.0 | 3 independent USB2.0 channels, one of which is OTG |
USB3.0 | 2-way USB 3.0 interface (shared with DP) |
Ethernet | 2-way RGMII Ethernet interface |
UART | 10 serial ports |
SPI | 5-way SPI |
I2C | 7-way I2C |
PWM | 15 PWM |
SDIO | 2-way SDIO interface, one is TF card, the other can be connected to SDIO WIFI |
ADC | 4-channel analog ADC input interface |
CAN | 2-way CAN bus |
GPIO | Multiplexable GPIO up to 120 |
upgrade | Support USB/TF card local upgrade |
CORRENT PARAMETER TABLE
| project | minimum | typical | maximum | |
| Power parameters | Voltage | 11V | 12V | 15V |
| ripple | 50mV | |||
| 3V RTC power consumption | 0.9uA | |||
| Desktop quiescent current (without screen) | 175mA | 225mA | 565mA | |
| Desktop quiescent current (without screen) | 215mA | |||
| Boot current (connected to 7 inch 720x1280) | 245mA | 295mA | 498mA | |
| Desktop quiescent current (connected to 7-inch 720x1280) | 285mA | |||
| environment | Relative humidity | -- | 65% | 75% |
| Operating temperature | -10℃ | -- | 60℃ | |
| storage temperature | -30℃ | -0℃ | 100℃ | |
