Main hardware indicators | |
size | 60mm long*46mm wide*3.2mm high |
CPU | ROCKCHIP RK3288K Quad Core A17 |
GPU | Mali T746 |
RAM | DDR3 Standard 2GB Optional 1GB/4G |
memory | EMMC 5.1 Standard 16GB Optional 8GB/32G/64G/128G |
power management | ACT8847 |
lithium battery | none |
Operating Voltage | 5V 1.5A above |
support system | Android5.1 / 7.1 / 8.1 / Ubuntu16.04 / Linux+QT |
operating temperature | -25 to +85 degrees |
life | Continuous operating life is more than 5 years |
Common interface of core board | |
HDMI | HDMI high-definition output supports 4K/1080P display |
EDP | Support 4Lane eDP up to 1080P |
RGB | Support RGB888 display output up to 1080P |
LVDS | Support dual 8LVDS display output up to 1080P |
MIPI DSI | Support 8Lane up to 2K/4K |
MIPI CSI | Two-way CSI supports up to two-way 1300W |
I2S | One I2S interface |
USB2.0 | Three USB2.0 channels, one of which is OTG |
Ethernet | PHY interface, baseboard plus PHY chip can expand 10/100/1000 Ethernet |
UART | 5 serial ports |
SPI | 1 way SPI |
I2C | 4-way I2C |
PWM | 4-way PWM |
TF | 1 channel TF card |
SDIO | 1 channel SDIO interface |
GPIO | Multiplexable GPIO up to 98 |
ADC | 1 channel analog ADC input interface |
upgrade | Support USB/TF card local upgrade |
CORRENT PARAMETER TABLE
project | minimum | typical | maximum | |
Power parameters | Voltage | 4.5V | 5V | 5.5V |
ripple | -- | -- | 50mV | |
current | 225mA | -- | -- | |
supply current (No other peripherals connected) | Start-up current | 235mA | 576mA | 1023mA |
Desktop Quiescent Current | 276mA | |||
stand-by current | 19mA | |||
supply current (connected to the display) | ||||
environment | Relative humidity | -- | 65% | 75% |
Operating temperature | -25℃ | -- | 85℃ | |
storage temperature | -30℃ | -0℃ | 90℃ | |
Main hardware indicators | |
size | 60mm long*46mm wide*3.2mm high |
CPU | ROCKCHIP RK3288K Quad Core A17 |
GPU | Mali T746 |
RAM | DDR3 Standard 2GB Optional 1GB/4G |
memory | EMMC 5.1 Standard 16GB Optional 8GB/32G/64G/128G |
power management | ACT8847 |
lithium battery | none |
Operating Voltage | 5V 1.5A above |
support system | Android5.1 / 7.1 / 8.1 / Ubuntu16.04 / Linux+QT |
operating temperature | -25 to +85 degrees |
life | Continuous operating life is more than 5 years |
Common interface of core board | |
HDMI | HDMI high-definition output supports 4K/1080P display |
EDP | Support 4Lane eDP up to 1080P |
RGB | Support RGB888 display output up to 1080P |
LVDS | Support dual 8LVDS display output up to 1080P |
MIPI DSI | Support 8Lane up to 2K/4K |
MIPI CSI | Two-way CSI supports up to two-way 1300W |
I2S | One I2S interface |
USB2.0 | Three USB2.0 channels, one of which is OTG |
Ethernet | PHY interface, baseboard plus PHY chip can expand 10/100/1000 Ethernet |
UART | 5 serial ports |
SPI | 1 way SPI |
I2C | 4-way I2C |
PWM | 4-way PWM |
TF | 1 channel TF card |
SDIO | 1 channel SDIO interface |
GPIO | Multiplexable GPIO up to 98 |
ADC | 1 channel analog ADC input interface |
upgrade | Support USB/TF card local upgrade |
CORRENT PARAMETER TABLE
project | minimum | typical | maximum | |
Power parameters | Voltage | 4.5V | 5V | 5.5V |
ripple | -- | -- | 50mV | |
current | 225mA | -- | -- | |
supply current (No other peripherals connected) | Start-up current | 235mA | 576mA | 1023mA |
Desktop Quiescent Current | 276mA | |||
stand-by current | 19mA | |||
supply current (connected to the display) | ||||
environment | Relative humidity | -- | 65% | 75% |
Operating temperature | -25℃ | -- | 85℃ | |
storage temperature | -30℃ | -0℃ | 90℃ | |

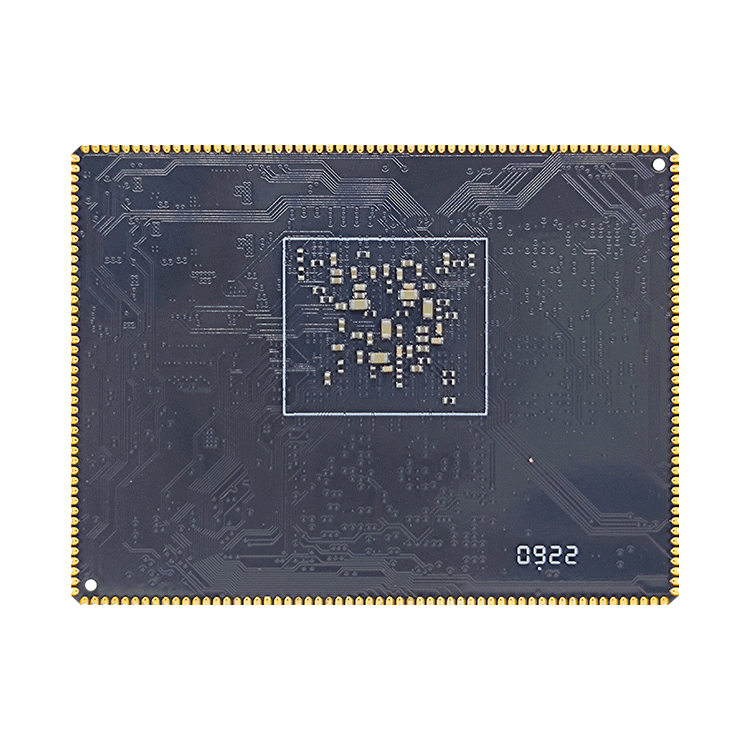

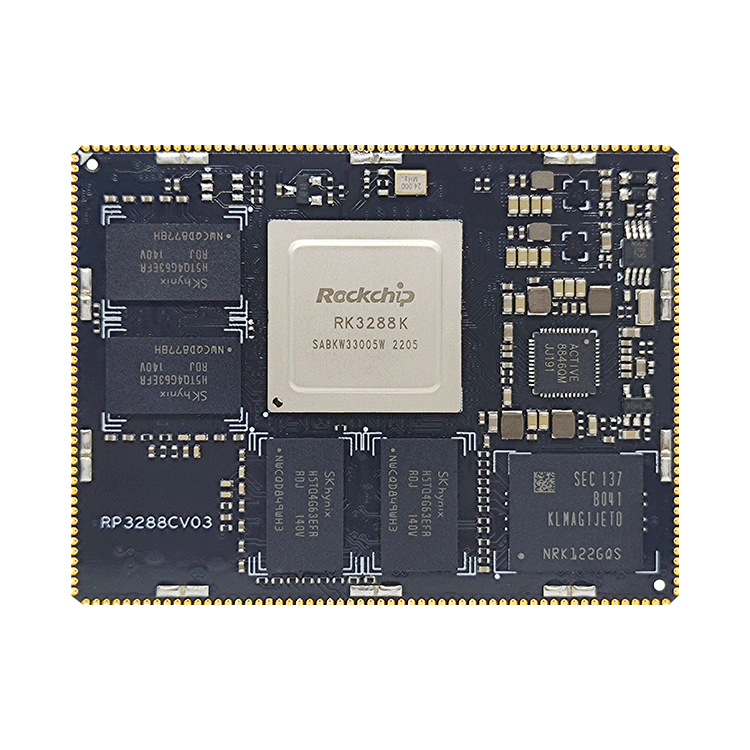

Product Show Case
