CPU BLOCK DIAGRAM
CORE BOARD BLOCK DIAGRAM
MAIN BOARD BLOCK DIAGRAM

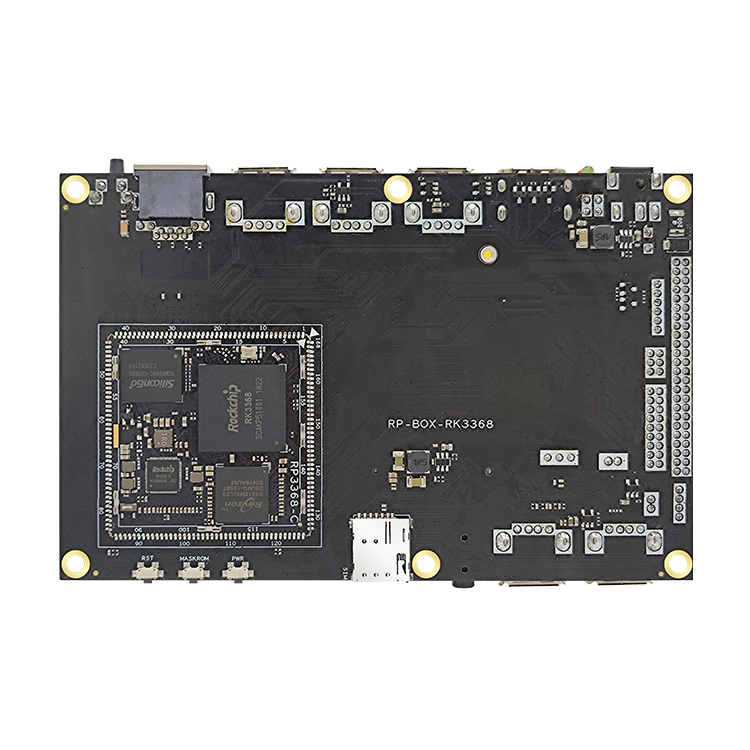

PRODUCT DISPLAY
PCB SIZE DRAWING
HARDWARE INDEX
| Size | 140mm length*90mm width*14mm height |
| CPU | ROCKCHIP RK3368 octa-core A53 |
| GPU | POWER VR G6110 GPU |
| RAM | LPDDR3 standard 2GB optional 4GB |
| Memory | EMMC 5.1 standard 32GB, optional 16GB/64GB |
| Power management | RK808-B |
| Operating Voltage | 12V 2A or more |
| support system | Andriod 8.1 |
| Operating temperature | -10 to +60 degrees |
| Life span | Continuous operating life is more than 5 years |
COMMONINTERFACE
| USB HOST | 8 USB ports (5 external, 3 internal plug-in) and another OTG2.0 |
| Serial port | 5 TTL 3.3V level |
| Other expansion interfaces | 15 IO |
| HDMI output | HDMI 2.0 supports 4K/1080 output |
| MIPI DSI display | Dual channel 4 lane up to 1080P |
| LVDS display | Support LVDS output up to 1280X800 |
| eDP display | 4 lane up to 1920x1080 |
| MIPI CSI input | 1 camera MIPI raw data input |
| DVP input | 1 8-bit DVP camera input |
| Ethernet | 1 channel 10M/100M/1000M |
| Voice output | 1 headphone left and right channel output, 2 speakers output 2W/8 ohm |
| Voice input | 1 microphone input |
| WIFI | WIFI 2.4G (AP6212) |
| Bluetooth | 1 channel 2.4G Bluetooth+BLE (AP6212) |
| 3G/4G | Built-in 4G function, PCI-E 3G/4G Internet |
| TF card | Support TF card |
| RTC real time clock | External button battery power-down time saving (independent HYM8563) power consumption is less than 0.2uA |
| System Upgrade | Support local USB upgrade |
CORRENT PARAMETER TABLE
| Item | minimum | typical | maximum | |
Power parameters Connect 7 inch 720x280 500 Brightness display | Voltage | 11.5V | 12V | 15V |
| Ripple | -- | 50mV | 100mV | |
| Turn-on current | 145mA | 215mA | 495mA | |
| Play sound | -- | 245mA | 512mA | |
| Connect HMDI boot current | 156mA | 225mA | 498mA | |
| Connect HMDI quiescent current | -- | 265mA | -- | |
CPU BLOCK DIAGRAM
CORE BOARD BLOCK DIAGRAM
MAIN BOARD BLOCK DIAGRAM
PRODUCT DISPLAY
PCB SIZE DRAWING
HARDWARE INDEX
| Size | 140mm length*90mm width*14mm height |
| CPU | ROCKCHIP RK3368 octa-core A53 |
| GPU | POWER VR G6110 GPU |
| RAM | LPDDR3 standard 2GB optional 4GB |
| Memory | EMMC 5.1 standard 32GB, optional 16GB/64GB |
| Power management | RK808-B |
| Operating Voltage | 12V 2A or more |
| support system | Andriod 8.1 |
| Operating temperature | -10 to +60 degrees |
| Life span | Continuous operating life is more than 5 years |
COMMONINTERFACE
| USB HOST | 8 USB ports (5 external, 3 internal plug-in) and another OTG2.0 |
| Serial port | 5 TTL 3.3V level |
| Other expansion interfaces | 15 IO |
| HDMI output | HDMI 2.0 supports 4K/1080 output |
| MIPI DSI display | Dual channel 4 lane up to 1080P |
| LVDS display | Support LVDS output up to 1280X800 |
| eDP display | 4 lane up to 1920x1080 |
| MIPI CSI input | 1 camera MIPI raw data input |
| DVP input | 1 8-bit DVP camera input |
| Ethernet | 1 channel 10M/100M/1000M |
| Voice output | 1 headphone left and right channel output, 2 speakers output 2W/8 ohm |
| Voice input | 1 microphone input |
| WIFI | WIFI 2.4G (AP6212) |
| Bluetooth | 1 channel 2.4G Bluetooth+BLE (AP6212) |
| 3G/4G | Built-in 4G function, PCI-E 3G/4G Internet |
| TF card | Support TF card |
| RTC real time clock | External button battery power-down time saving (independent HYM8563) power consumption is less than 0.2uA |
| System Upgrade | Support local USB upgrade |
CORRENT PARAMETER TABLE
| Item | minimum | typical | maximum | |
Power parameters Connect 7 inch 720x280 500 Brightness display | Voltage | 11.5V | 12V | 15V |
| Ripple | -- | 50mV | 100mV | |
| Turn-on current | 145mA | 215mA | 495mA | |
| Play sound | -- | 245mA | 512mA | |
| Connect HMDI boot current | 156mA | 225mA | 498mA | |
| Connect HMDI quiescent current | -- | 265mA | -- | |
Product Show Case
