CPU BLOCK DIAGRAM
CORE BOARD BLOCK DIAGRAM
MAIN BOARD BLOCK DIAGRAM

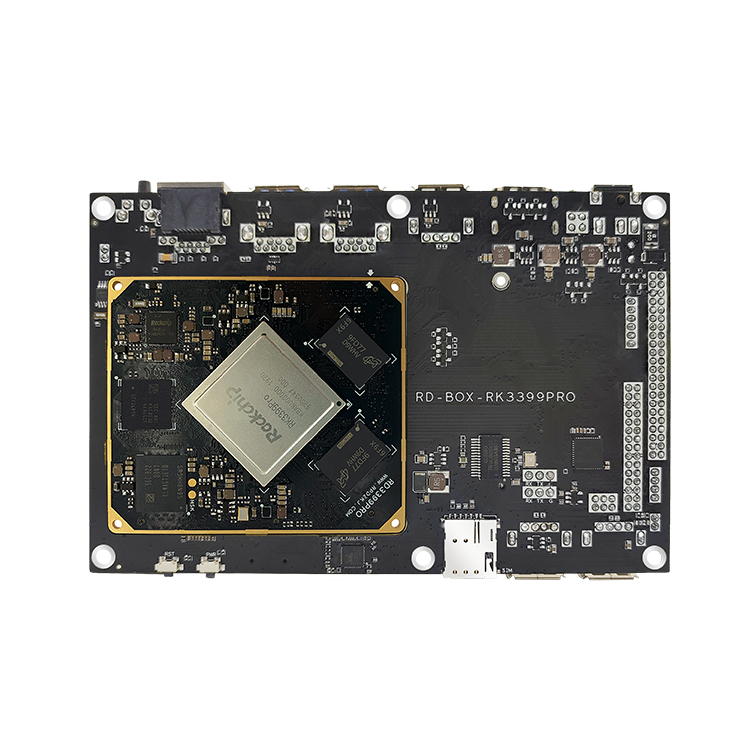

PRODUCT DISPLAY
PCB SIZE DRAWING
HARDWARE INDEX
| size | 140mm length*90mm width*14mm height |
| CPU | ROCKCHIP RK3399 six-core A72 double + A53 four |
| GPU | Mali T860 |
| RAM | LPDDR4 standard 2GB optional 4GB |
| Memory | EMMC 5.1 standard configuration 16GB, optional 32GB/64GB |
| Power management | RK808-D |
| Operating Voltage | 12V 2A or more |
| support system | Andriod 8.1/ Ubuntu1804+ROS/Linux+QT5.9/Debian9 |
| Operating temperature | -10 to +60 degrees |
| Life span | Continuous operating life is more than 5 years |
COMMONINTERFACE
| USB | HOST 6 USB ports (5 external, 1 internal plug-in), one USB 3.0, the other OTG3.0 |
| Serial port | 2 TTL 3.3V level |
| Other expansion interfaces | 20 IO |
| HDMI output | HDMI 2.0 supports 4K output (different display with eDP or LVDS) |
| MIPI DSI display | Dual-channel 8 lane up to 2K |
| LVDS display | Support dual / dual LVDS output up to 1920x1080 |
| eDP display | 4 lane up to 1920x1080 |
| MIPI CSI input | 2 cameras can support dual MIPI raw data input |
| Ethernet | 1 channel 10M/100M/1000M |
| Voice output | 1 headphone left and right channel output, 2 speakers output 2W/8 ohm |
| Voice input | 1 microphone input |
| WIFI | WIFI 2.4G/5G dual band (AP6256) |
| Bluetooth | 1 channel 2.4G Bluetooth+BLE (AP6256) |
| 3G/4G | Built-in 4G function, PCI-E 3G/4G Internet |
| TF card | Support TF card |
| RTC real time clock | External button battery power-down time saving (independent HYM8563) power consumption is less than 0.2uA |
| System Upgrade | Support local USB upgrade |
CORRENT PARAMETER TABLE
| project | The smallest | Typical | maximum | |
| Power parameters | Voltage | 11V | 12V | 15V |
| Ripple | -- | 50mV | 100mV | |
| Boot current (connected to 10.1 screen) | 225mA | 465mA | 928mA | |
| Play sound (connect to 10.1 screen) | -- | 475mA | 623mA | |
| Connect HMDI+ screen boot current | 242mA | 535mA | 965mA | |
| Connect to HMDI+ screen quiescent current | -- | 515mA | -- | |
